Our Mounting Structure

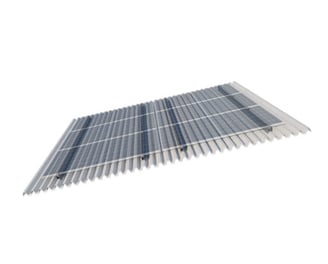

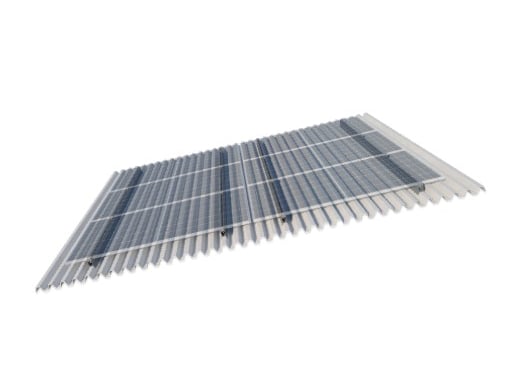

MapleSun Premium Tin Roof Solar Mounting System
Engineered for Superior Performance & Durability
Key Features & Benefits
✔ Advanced Triple-Protection Coating
Hot-dip galvanized with zinc-aluminum-magnesium alloy for maximum corrosion resistance
Outperforms standard galvanized steel by 3x in harsh environments
Self-healing properties protect cut edges from rust
✔ Unmatched Longevity
Backed by our industry-leading 20-year anti-corrosion warranty
Withstands extreme temperatures from -50°C to 100°C
Specially engineered for Canada's toughest weather conditions
✔ Universal Compatibility
Compatible with all major solar panel brands and models
Customizable designs to fit any tin roof application
Adjustable tilt angles to optimize energy production
✔ Engineered for Safety
Wind-rated up to 160 km/h (site-specific engineering available)
Snow load optimized for Canadian elevations
Meets all Canadian building codes and solar standards
Technical Specifications
Material: High-grade steel with Magnelis®-level galvanization
Installation: Tin roof compatible (standing seam & corrugated)
Wind Rating: 120 km/h standard (upgradeable to 160 km/h)
Temperature Range: -50°C to 100°C operational
Structural Warranty: 10 years comprehensive coverage

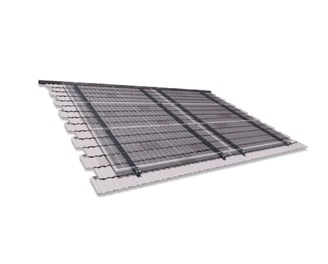

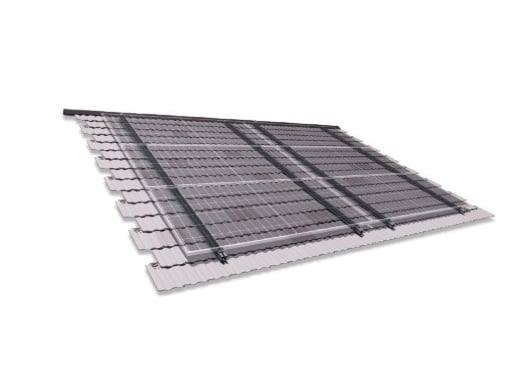

MapleSun Premium Tile Roof Solar Mounting System
Optimized for Durability & Performance on Tile Roofs
Key Features & Benefits
✔ Advanced Corrosion Protection
Triple-alloy hot-dip galvanization (zinc-aluminum-magnesium) for maximum weather resistance
3x more durable than conventional galvanized steel mounting systems
Self-healing coating technology protects exposed edges
✔ Engineered for Longevity
Backed by a 20-year anti-corrosion performance guarantee
Withstands extreme Canadian temperatures (-50°C to 100°C)
Specially formulated to resist freeze-thaw damage
✔ Universal Tile Roof Compatibility
Compatible with all major solar module types and manufacturers
Customizable configurations for various tile profiles
Non-penetrating options available
✔ Superior Structural Performance
Wind-rated to 120 km/h (140 km/h available with reinforcement)
Engineered for 1.4 kN/m² snow loads (site-specific upgrades available)
Low-profile design maintains roof aesthetics
Technical Specifications
Material Composition: Premium galvanized steel with stainless steel components
Roof Type: Designed specifically for tile roof applications
Wind Rating: 120 km/h standard (upgradeable to 140 km/h)
Temperature Tolerance: -50°C to 100°C operational range
Structural Warranty: 10-year comprehensive coverage
Compliance: Meets ASCE, AISC, and Canadian building standards.

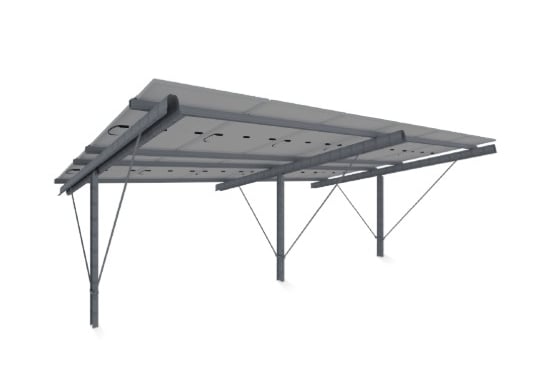

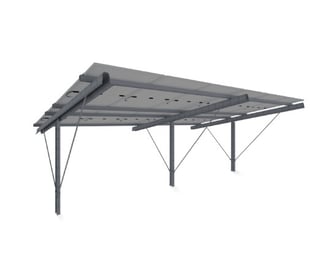

MapleSun Premium Ground Mount Solar Racking System
Engineered for Maximum Durability & Installation Efficiency
Key Features & Benefits
✔ Advanced Corrosion Protection
Triple-alloy hot-dip galvanization (zinc-aluminum-magnesium) for superior weather resistance
3x more durable than standard galvanized steel systems
Self-healing technology protects cut edges from rust
✔ Optimized Installation
Modular design allows for 2-portrait or 3-portrait configurations
Rapid assembly system reduces labor costs and installation time
Minimal crew requirements for cost-effective deployments
✔ Unmatched Longevity
Backed by 20-year anti-corrosion warranty
Withstands extreme temperatures (-50°C to 100°C)
Engineered for Canada's toughest environmental conditions
✔ Universal Compatibility
Works with all solar module types and manufacturers
Fully customizable for any project requirements
Adjustable tilt angles for optimal energy production
Technical Specifications
Installation Type: Ground-mounted (ramming or concrete foundation)
Material Composition: High-grade galvanized steel with stainless steel fasteners
Wind Rating: 120 km/h standard (upgradeable to 160 km/h)
Temperature Range: -50°C to 100°C operational
Snow Load: Site-specific engineering available
Structural Warranty: 10 years comprehensive coverage
Compliance: Meets ASCE, AISC, and Canadian building standards

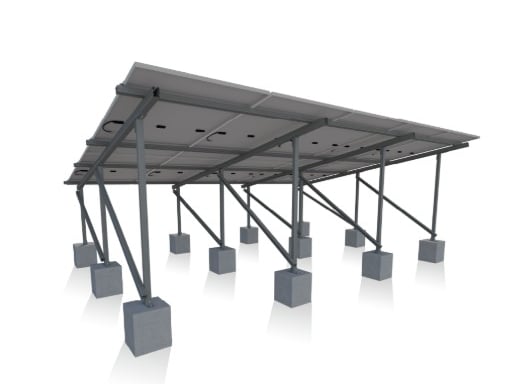

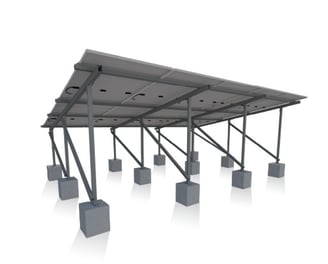

MapleSun Premium Flat Roof Solar Mounting System
Engineered for Commercial & Industrial Rooftop Applications
Key Features & Benefits
✔ Advanced Weather Protection
Triple-layer galvanized coating (zinc-aluminum-magnesium alloy) for maximum corrosion resistance
3x more durable than conventional galvanized steel systems
Self-restoring edge protection maintains integrity at cut points
✔ Optimized Rooftop Performance
Low-profile design (0°-15° tilt) minimizes wind load impact
Non-penetrating ballasted option available for sensitive roofs
Weight-distributed system protects roof membranes
✔ Unmatched Longevity
Industry-leading 20-year corrosion protection warranty
Withstands extreme Canadian temperatures (-50°C to 100°C)
Engineered for heavy snow loads (site-specific calculations available)
✔ Universal Compatibility
Accommodates all major PV module types and configurations
Customizable layouts for optimal energy density
Pre-assembled components for faster installation
Technical Specifications
Roof Types: Compatible with asphalt, EPDM, TPO, and concrete surfaces
Tilt Range: 0°-15° adjustable
Wind Rating: 120 km/h standard (upgradeable to 160 km/h)
Material: Heavy-duty galvanized steel with stainless steel fasteners
Temperature Range: -50°C to 100°C operational
Structural Warranty: 10-year comprehensive coverage
Compliance: Meets ASCE 7, NBC, and Canadian building codes

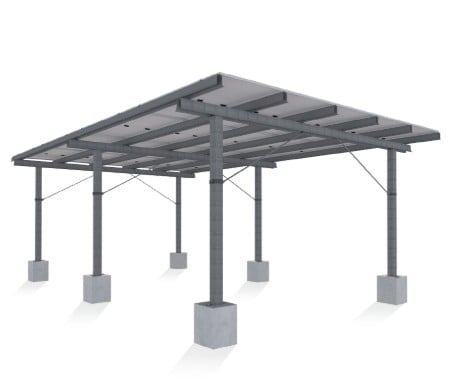

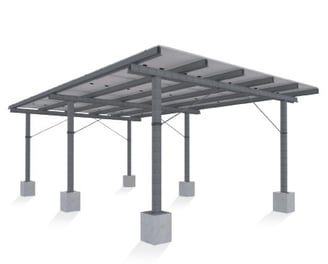

MapleSun Premium Canopy Mounting System
Durable, Multi-Purpose Solar Structures for Commercial Applications
Key Features & Benefits
✔ Superior Corrosion Protection
Triple-alloy hot-dip galvanization (zinc-aluminum-magnesium) for maximum durability
3x more corrosion-resistant than standard galvanized steel
Self-healing technology protects cut edges from weathering
✔ Dual-Function Design
Generates clean energy while providing shade/protection
Ideal for parking lots, walkways, and public spaces
Customizable layouts for any project requirements
✔ Engineered for Harsh Conditions
Withstands extreme temperatures (-50°C to 100°C)
Wind-rated to 120 km/h (upgradeable to 160 km/h)
Site-specific snow load engineering available
✔ Universal Compatibility
Works with all solar module types and manufacturers
Pre-assembled components for faster installation
EV charging station integration ready
Technical Specifications
Installation Sites: Parking areas, rooftops, open grounds
Tilt Angle: 0°-15° adjustable
Material: Heavy-duty galvanized steel with stainless fasteners
Wind Rating: 120 km/h standard (160 km/h upgrade)
Temperature Range: -50°C to 100°C operational
Structural Warranty: 10 years comprehensive coverage
Compliance: Meets ASCE, AISC, and Canadian building codes

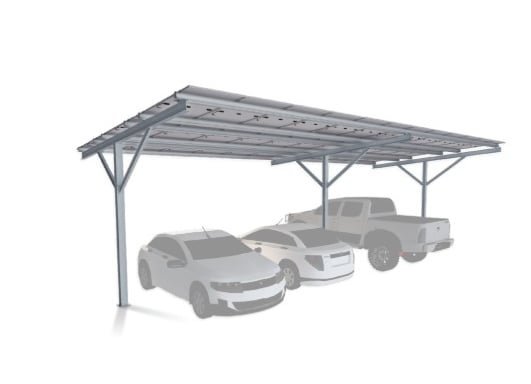

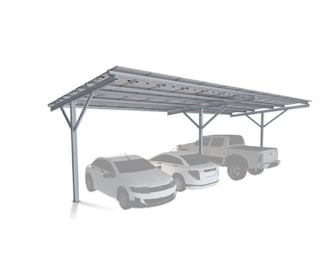

MapleSun Premium Car Park Solar Mounting System
Optimized Solar Solutions for Parking Facilities
Key Features & Benefits
✔ Advanced Structural Design
Proprietary hat profile configuration for direct module mounting
3x enhanced corrosion resistance compared to standard zinc coatings
Self-restoring edge protection technology
✔ Dual-Purpose Functionality
Generates clean energy while providing vehicle shade/protection
Ideal for commercial lots, retail centers, and institutional parking
Custom layouts to maximize space utilization
✔ Engineered for Canadian Conditions
Withstands extreme temperatures (-50°C to 100°C)
Wind-rated to 120 km/h (upgradeable to 160 km/h)
Site-specific snow load calculations available
✔ Universal Compatibility
Accommodates all PV module types and manufacturers
Pre-fabricated components for rapid installation
EV charging ready configurations
Technical Specifications
Installation Sites: Surface lots, parking structures, driveways
Tilt Angle: 0°-10° optimized for parking applications
Material: Heavy-duty galvanized steel with stainless components
Wind Rating: 120 km/h standard (160 km/h engineered option)
Temperature Range: -50°C to 100°C operational
Structural Warranty: 10-year comprehensive coverage
Compliance: Meets ASCE, AISC, and Canadian building standards
